General information |
|
Model name
|

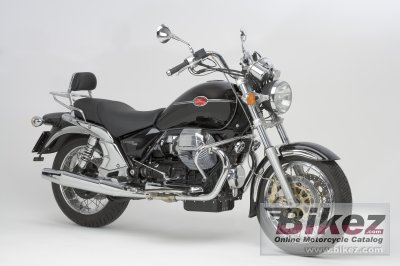

Moto Guzzi California Classic |
|
Year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1064.0 ccm (64.93 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
72.4 HP (52.9 kW)) @ 6400 RPM |
|
Torque
|
94.0 Nm (9.6 kgf-m or 69.3 ft.lbs) @ 5000 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
92.0 x 80.0 mm (3.6 x 3.1 inches) |
|
Fuel system
|
Injection. Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel injection; |
|
Ignition
|
Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
|
Lubrication system
|
Forced lobes, with geared pump and pressure regulator |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single disc, dry, with mechanical control |
|
Exhaust system
|
Steel, 2 tubes connected to an expansion room, that is connected to 2 steel mufflers. Catalyzed with Lambda probe (EURO 2) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
116 mm (4.6 inches) |
|
Front suspension
|
Marzocchi hydraulic telescopic fork, 45 mm |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swing arm with 2 hydraulic shock absorbers |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
110/90-18 |
|
Rear tire
|
150/70-17 |
|
Front brakes
|
Double disc. Two Brembo Oro series stainless steel flooating discs, with 4 piston calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo stainless steel fixed disc, with 2 piston calipers |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
251.0 kg (553.4 pounds) |
|
Power/weight ratio
|
0.2885 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1150 mm (45.3 inches) |
|
Overall length
|
2380 mm (93.7 inches) |
|
Ground clearance
|
190 mm (7.5 inches) |
|
Wheelbase
|
1560 mm (61.4 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Grey |
|
Starter
|
Electric |
