| Moto Guzzi's profilation of this bike |
| Italian styling and the legendary 90º V-Twin in a lighter, more affordable package. It´s the Moto Guzzi you´ve been waiting for. |
|
General information |
|
Motorcycle name
|

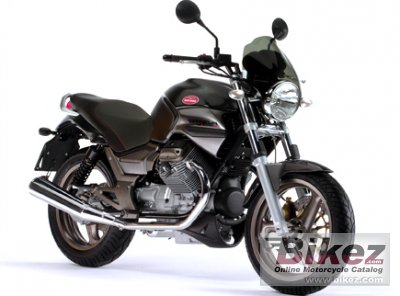

Moto Guzzi Breva V750 IE |
|
Year
|
2006 |
|
Category
|
Sport |
| Price as new | US$ 8490. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
744.0 ccm (45.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
48.0 HP (35.0 kW)) @ 6600 RPM |
|
Torque
|
59.0 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 3000 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber- Marelli electronic injection |
|
Ignition
|
Magneti Marelli IAW electronic digital ignition |
|
Lubrication system
|
Wet sump, forced oil, cartridge filter |
|
Cooling system
|
Air |
|
Clutch
|
Single disc, dry with cush drive |
|
Exhaust system
|
Triple catalyzed with Lambda probe |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Marzocchi 40 mm hydraulic |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound |
|
Rear wheel travel
|
118 mm (4.7 inches) |
|
Front tire
|
110/70-17 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Power/weight ratio
|
0.2638 HP/kg |
|
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1190 mm (46.9 inches) |
|
Overall length
|
2170 mm (85.4 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Ground clearance
|
176 mm (6.9 inches) |
|
Wheelbase
|
1449 mm (57.0 inches) |
|
Fuel capacity
|
16.99 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Red, Black, Silver |
|
Starter
|
Electric |
