| Moto Guzzi's profilation of this bike |
| The modern sharp lines of the “naked” make it seem ready for any challenge. The specially designed frame makes it agile, manageable and easy to ride while the engine that has the entire history of Moto Guzzi behind it provides the power. |
|
General information |
|
Model
|

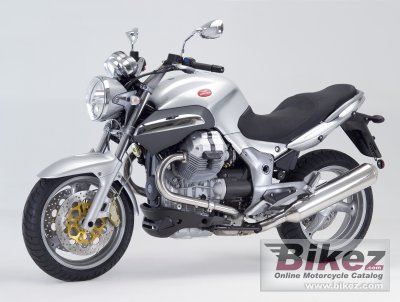

Moto Guzzi Breva 850 |
|
Model year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
877.0 ccm (53.51 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
71.1 HP (51.9 kW)) @ 7600 RPM |
|
Torque
|
66.0 Nm (6.7 kgf-m or 48.7 ft.lbs) @ 7000 RPM |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
92.0 x 66.0 mm (3.6 x 2.6 inches) |
|
Fuel system
|
Injection. Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel; 2 throttle bodies of 40 mm with injectors Weber IW 031, Lambda sensor |
|
Ignition
|
Inductive discharge, digitally controlled, electronic twin spark ignition |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dual disc dry |
|
Exhaust system
|
Stainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, in high tensile strenght tubular steel |
|
Rake (fork angle)
|
25.3° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Telescopic hydraulic fork with 45 mm, preload adjustable |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Single arm suspension progressive linkage, rear shock absorber adjustable in rebound ad pre-load (hydraulic). |
|
Rear wheel travel
|
140 mm (5.5 inches) |
|
Front tire
|
110/70-ZR17 |
|
Rear tire
|
130/80-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
231.0 kg (509.3 pounds) |
|
Power/weight ratio
|
0.3077 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Ground clearance
|
190 mm (7.5 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Red, black, silver |
|
Starter
|
Electric |
