| Moto Guzzi's profilation of this bike |
| Compact dimensions, a comfortable sitting position and great manoeuvrability make this baby Breva agile in city traffic and great fun on country roads, solo or with a passenger. |
|
General information |
|
Model name
|

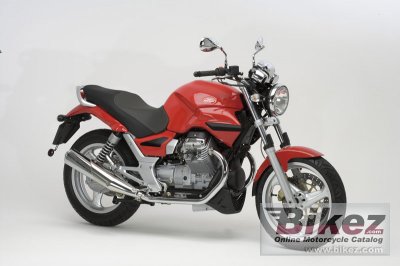

Moto Guzzi Breva 750 |
|
Year
|
2010 |
|
Category
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
744.0 ccm (45.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
47.6 HP (34.7 kW)) @ 6800 RPM |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber-Marelli |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single disc dry with cush drive |
|
Exhaust system
|
Three-way catalyzer with Lambda sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Marzocchi hydraulic telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front tire
|
110/70-17 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Power/weight ratio
|
0.2615 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1175 mm (46.3 inches) |
|
Overall length
|
2190 mm (86.2 inches) |
|
Overall width
|
730 mm (28.7 inches) |
|
Ground clearance
|
176 mm (6.9 inches) |
|
Wheelbase
|
1449 mm (57.0 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Black, red |
