| Moto Guzzi's profilation of this bike |
| Breva 750 is easy and instinctive to ride, inspiring immediate confidence in the rider. Its compact size, ergonomic riding position and easy handling are all precious characteristics in city traffic, but the Breva 750 is also fun to ride on mixed roads, solo or with a passenger. |
|
General information |
|
Motorcycle name
|

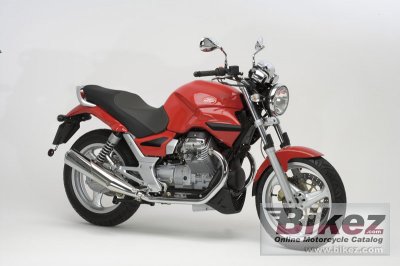

Moto Guzzi Breva 750 |
|
Model year
|
2009 |
|
Category
|
Naked bike |
| Price as new | US$ 7790. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
744.0 ccm (45.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
47.6 HP (34.7 kW)) |
|
Torque
|
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber-Marelli electric injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Magneti Marelli IAW 15RC electronic digital ignition with inductive spark |
|
Lubrication system
|
By lobes with pressure pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single disc dry with cush drive |
|
Exhaust system
|
Three-way catalyzer with Lambda sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Detachable tubular duplex cradle in special high-strengh steel |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Marzocchi hydraulic telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swinging arm in light cast alloy with two dampers, preload adjustable |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front tire
|
110/70-17 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
182.0 kg (401.2 pounds) |
|
Power/weight ratio
|
0.2615 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1175 mm (46.3 inches) |
|
Overall length
|
2170 mm (85.4 inches) |
|
Overall width
|
730 mm (28.7 inches) |
|
Ground clearance
|
190 mm (7.5 inches) |
|
Wheelbase
|
1449 mm (57.0 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black, red |
|
Starter
|
Electric |
