| Moto Guzzi's profilation of this bike |
| Individuality and sheer style are embodied in a reserved, but sophisticated design that displays highly advanced innovative technological solutions balanced with a trendy image.
|
|
General information |
|
Model
|

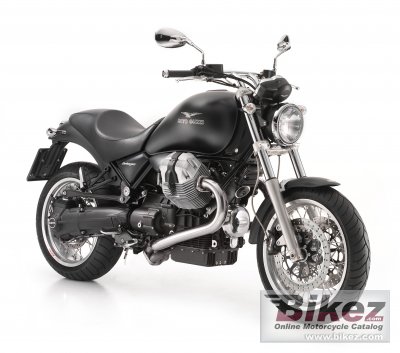

Moto Guzzi Bellagio |
|
Model year
|
2010 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
935.6 ccm (57.09 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
73.8 HP (53.8 kW)) @ 7200 RPM |
|
Torque
|
78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
95.0 x 66.0 mm (3.7 x 2.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry mechanically operated twin plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Very rigid high tensile steel tubular twin cradle |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
138 mm (5.4 inches) |
|
Front suspension
|
Marzocchi 45 mm adjustable front forks |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Single swingarm with progressive action and ndash |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR18 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Stainless steel discs, floating Brembo calipers with 2 parallel pistons. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Fixed stainless steel disc, floating Brembo calipers with 2 parallel pistons. |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
223.0 kg (491.6 pounds) |
|
Weight incl. oil, gas, etc
|
237.0 kg (522.5 pounds) |
|
Power/weight ratio
|
0.3307 HP/kg |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2253 mm (88.7 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1560 mm (61.4 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black, gray |
