| Moto Guzzi's profilation of this bike |
| The new Bellagio symbolises the depth of the relationship between Moto Guzzi and its surrounding territory. This relationship is so strong that the immense beauty of the Lariano area affects both the ideas and creativity of man and in a sense leads him to create works of natural beauty in all his endeavours.
|
|
General information |
|
Model
|

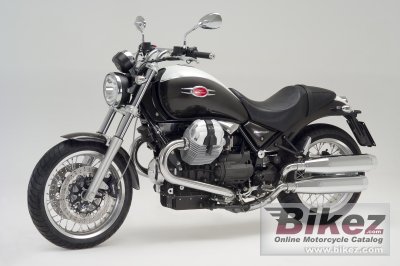

Moto Guzzi Bellagio |
|
Model year
|
2008 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
935.6 ccm (57.09 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
73.8 HP (53.8 kW)) @ 7200 RPM |
|
Torque
|
78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
95.0 x 66.0 mm (3.7 x 2.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Multipoint sequential electronic injection, Magneti Marelli IAW phased, alfa-n system; 2 40 mm throttle bodies with Weber IW 031 injectors |
|
Ignition
|
Digital electronic with Magneti Marelli IAW 15RC inductive discharge |
|
Lubrication system
|
Helicoidal gears, ratio 24/35 = 1 : 1.458 |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Dry mechanically operated twin plate |
|
Exhaust system
|
Maximum Maximum power |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Very rigid high tensile steel tubular twin cradle |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
138 mm (5.4 inches) |
|
Front suspension
|
Marzocchi 45 mm adjustable front forks |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single swingarm with progressive action and ndash |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-18 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
224.0 kg (493.8 pounds) |
|
Power/weight ratio
|
0.3292 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1310 mm (51.6 inches) |
|
Overall length
|
2270 mm (89.4 inches) |
|
Overall width
|
890 mm (35.0 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1570 mm (61.8 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
