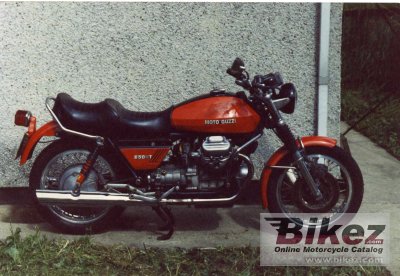

Moto Guzzi 850 T 19741974 Moto Guzzi 850 T specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Moto Guzzi 850 T |
| Year | 1974 |
| Category | Sport touring |
| Rating | 3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 844.0 ccm (51.50 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 68.0 HP (49.6 kW)) @ 7000 RPM |
| Top speed | 195.0 km/h (121.2 mph) |
| Max RPM | 7000 |
| Compression | 9.5:1 |
| Bore x stroke | 83.0 x 78.0 mm (3.3 x 3.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Dell´Orto 30 mm |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Contact breacers 2 ignition coils |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Dry type, twin plates |
| Fuel consumption | 7.27 litres/100 km (13.8 km/l or 32.36 mpg) |
| Greenhouse gases | 168.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Duble chromet steel pipes |
| Chassis, suspension, brakes and wheels | |
| Frame type | Duplex cradle, tubular structure |
| Front suspension | Telescopic fork, hydraulic dampers |
| Rear suspension | Swinging fork |
| Front tire | 4.00-18 |
| Rear tire | 4.00-18 |
| Front brakes | Single disc. 2-piston caliper |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 235.0 kg (518.1 pounds) |
| Power/weight ratio | 0.2894 HP/kg |
| Overall height | 1060 mm (41.7 inches) |
| Overall length | 2200 mm (86.6 inches) |
| Overall width | 780 mm (30.7 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1470 mm (57.9 inches) |
| Fuel capacity | 25.00 litres (6.61 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Metalic brown, green, black |
| Starter | Electric |
