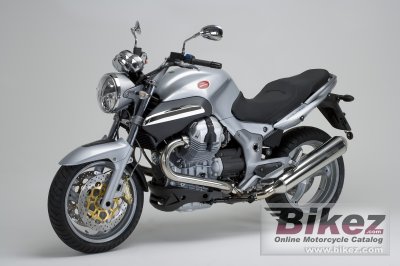

Moto Guzzi 1200 Sport ABS 20122012 Moto Guzzi 1200 Sport ABS specifications, pictures, reviews and rating |
| Moto Guzzi's profilation of this bike |
| Although the Moto Guzzi 1200 Sport has a sports type set-up, it is also an excellent tourer with every detail well designed for the rider and pillion passenger to travel in the utmost comfort. |
| General information | |
|---|---|
| Motorcycle name | Moto Guzzi 1200 Sport ABS |
| Model year | 2012 |
| Category | Naked bike |
| Rating | 3.3 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 1151.0 ccm (70.23 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | 90° V-Twin |
| Power output | 103.3 HP (75.4 kW)) @ 7000 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6750 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Splash |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Double disk, dry |
| Driveline | Compact reactive shaft drive CA.RC. Double universal joint with oating bevel gear, ratio 12/44 = 1 : 3,666 |
| Emission details | Euro 3 |
| Exhaust system | Stainless steel, 2 into 1 type with catalytic converter, height adjustable mu er |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular cradle, high tensile steel |
| Rake (fork angle) | 25.0° |
| Trail | 120 mm (4.7 inches) |
| Front suspension | Telescopic hydraulic fork with Ø 45 mm spring preload and rebound damping adjustable. |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. ABS. Stainless steel floating disc, wave type, 4 opposed pistons. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. ABS. Steel fi xed disc, fl oating caliper with 2 parallel pistons |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 240.0 kg (529.1 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 840 mm (33.1 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 23.00 litres (6.08 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Color options | Black, silver |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Moto Guzzi 1200 Sport ABS discussion group or the general Moto Guzzi discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
