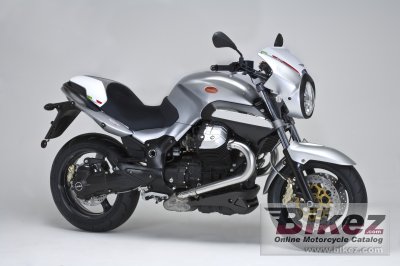

Moto Guzzi 1200 Sport 4V 20102010 Moto Guzzi 1200 Sport 4V specifications, pictures, reviews and rating |
| Moto Guzzi's profilation of this bike |
| The look we already know but the 105 CV of “grunt” from the “Quattrovalvole” engine is all new. The power delivery is silky smooth and, on the open road, the bike’s true sports character shines along with numerous technical innovations and a new sense of style. |
| General information | |
|---|---|
| Motorcycle name | Moto Guzzi 1200 Sport 4V |
| Year of manufacture | 2010 |
| Type | Naked bike |
| Rating | 3.3 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 1151.0 ccm (70.23 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 103.3 HP (75.4 kW)) @ 7000 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6750 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 81.2 mm (3.7 x 3.2 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe. |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Splash |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Double disk, dry |
| Exhaust system | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular cradle, high tensile steel |
| Rake (fork angle) | 25.0° |
| Trail | 120 mm (4.7 inches) |
| Front suspension | Telescopic hydraulic fork with Ø 45 mm spring preload and rebound damping adjustable. |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
| Rear wheel travel | 140 mm (5.5 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Dry weight | 240.0 kg (529.1 pounds) |
| Power/weight ratio | 0.4303 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1160 mm (45.7 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 23.00 litres (6.08 US gallons) |
| Reserve fuel capacity | 5.00 litres (1.32 US gallons) |
| Other specifications | |
| Color options | Black, gray |
| Starter | Electric |
