| Moto Guzzi's profilation of this bike |
| he attention to detail is typically Italian and its Moto Guzzi DNA and high-tech injection system make it one of those machines that is best appreciated from the saddle.
|
|
General information |
|
Model
|

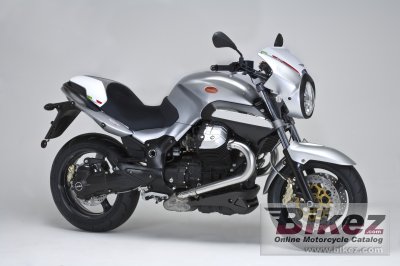

Moto Guzzi 1200 Sport |
|
Year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1151.0 ccm (70.23 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
93.9 HP (68.5 kW)) @ 7800 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6000 RPM |
|
Bore x stroke
|
95.0 x 81.2 mm (3.7 x 3.2 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Weber-Marelli electronic fuel injection with stepper motor control |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Magneti Marelli IAW5A, รก-n type; 2 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition |
|
Lubrication system
|
Splash |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Double disk, dry |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular cradle, high tensile steel |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
Telescopic hydraulic fork with 45 mm and TIN surface treatment, preload adjustable |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic) |
|
Rear wheel travel
|
110 mm (4.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
229.0 kg (504.9 pounds) |
|
Power/weight ratio
|
0.4099 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1160 mm (45.7 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
23.00 litres (6.08 US gallons) |
|
Other specifications |
|
Color options
|
Black, red |
