| General moped information |
|---|

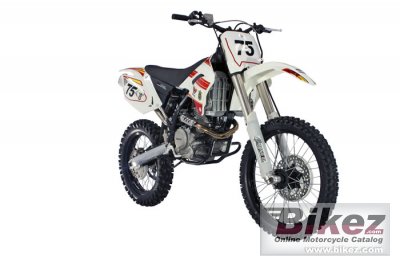

| Model: | Mondial X-Treme Moto Cross |
| Year: | 2012 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 16.00 ccm (0.98 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 24.14 HP (17.6 kW)) @ 8500 RPM |
| Torque: | 22.00 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 7000 RPM |
| Compression: | 10.8:1 |
| Bore x stroke: | 70.0 x 65.5 mm (2.8 x 2.6 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | DCDI |
| Lubrication system: | Pressure spray |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multiidisc |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tube |
| Front suspension: | Telescopic fork |
| Rear suspension: | Dual shock |
| Front tyre: | 80/100-21 |
| Rear tyre: | 110/100-18 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 125.0 kg (275.6 pounds) |
| Power/weight ratio: | 0.1931 HP/kg |
| Overall height: | 1,259 mm (49.6 inches) |
| Overall length: | 2,184 mm (86.0 inches) |
| Overall width: | 832 mm (32.8 inches) |
| Wheelbase: | 1,498 mm (59.0 inches) |
| Fuel capacity: | 7.00 litres (1.85 gallons) |
| Other specifications |
|---|
| Color options: | White/red |
| Starter: | Electric & kick |
| Electrical: | 12V 5.0 A battery. |
