General information |
|
Model name
|

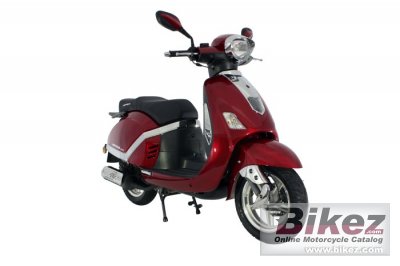

Mondial 150 ZNX |
|
Year of manufacture
|
2012 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
151.1 ccm (9.22 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
7.6 HP (5.6 kW)) |
|
Torque
|
8.6 Nm (0.9 kgf-m or 6.3 ft.lbs) |
|
Top speed
|
90.0 km/h (55.9 mph) |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
57.4 x 58.4 mm (2.3 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Oil Pump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Hydraulic fork |
|
Rear suspension
|
Swing arm |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
110.0 kg (242.5 pounds) |
|
Power/weight ratio
|
0.0695 HP/kg |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
1905 mm (75.0 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Wheelbase
|
1300 mm (51.2 inches) |
|
Fuel capacity
|
7.60 litres (2.01 US gallons) |
|
Other specifications |
|
Color options
|
Silver, red |
|
Starter
|
Electric & kick |
