| General information |
|---|

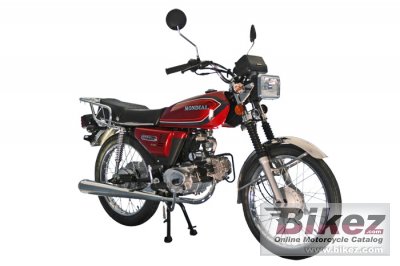

| Model: | Mondial 100 UGK |
| Year: | 2012 |
| Category: | Allround |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 97.00 ccm (5.92 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 6.44 HP (4.7 kW)) @ 7500 RPM |
| Torque: | 7.00 Nm (0.7 kgf-m or 5.2 ft.lbs) @ 5000 RPM |
| Top speed: | 85.0 km/h (52.8 mph) |
| Compression: | 8.6:1 |
| Bore x stroke: | 1,270.0 x 1,270.0 mm (50.0 x 50.0 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Lubrication system: | Oil Pump |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet Type |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Rear suspension: | Dual shocks |
| Front tyre: | 2.50-18 |
| Rear tyre: | 3.00-18 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 92.0 kg (202.8 pounds) |
| Power/weight ratio: | 0.0700 HP/kg |
| Overall width: | 1,000 mm (39.4 inches) |
| Wheelbase: | 1,230 mm (48.4 inches) |
| Fuel capacity: | 10.00 litres (2.64 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Starter: | Electric & kick |
| Electrical: | 12V 5.0 Ah battery. |
