| General information |
|---|

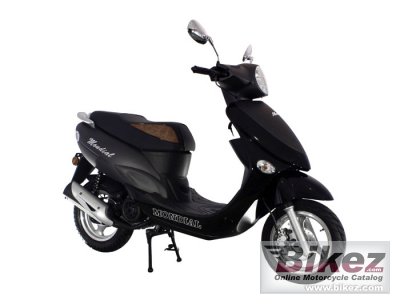

| Model: | Mondial 100 Loyal |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 100.0 ccm (6.10 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 5.9 HP (4.3 kW)) @ 8500 RPM |
| Torque: | 6.2 Nm (0.6 kgf-m or 4.6 ft.lbs) @ 7000 RPM |
| Top speed: | 80.0 km/h (49.7 mph) |
| Compression: | 9.5:1 |
| Bore x stroke: | 50.0 x 52.1 mm (2.0 x 2.1 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Lubrication system: | Oil Pump |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Rear suspension: | Swing arm |
| Front tyre: | 120/70-12 |
| Rear tyre: | 120/70-12 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 95.0 kg (209.4 pounds) |
| Power/weight ratio: | 0.0621 HP/kg |
| Overall height: | 1150 mm (45.3 inches) |
| Overall length: | 1780 mm (70.1 inches) |
| Overall width: | 710 mm (28.0 inches) |
| Wheelbase: | 1310 mm (51.6 inches) |
| Fuel capacity: | 5.50 litres (1.45 gallons) |
| Other specifications |
|---|
| Color options: | White, black |
| Starter: | Electric & kick |
| Electrical: | 12V 5.0 A battery. |
