| Mission's profilation of this bike |

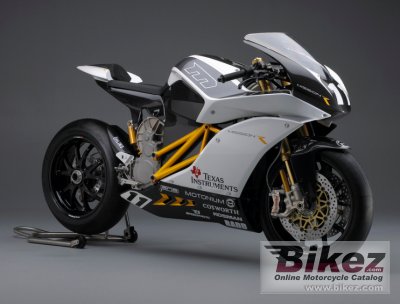

| Introducing the Mission R, the new factory race bike from Mission Motors. The Mission R is the most advanced electric racing motorcycle in the world. With components and software from MissionEVT, a revolutionary chassis design by James Parker, and cutting edge industrial design by Tim Prentice of Motonium Design, the Mission R is powerful, intelligent and downright fierce. |
| General moped information |
|---|
| Model: | Mission R |
| Year: | 2011 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Engine type: | Electric |
| Engine details: | 3 phase AC induction motor |
| Power: | 141.00 HP (102.9 kW)) |
| Torque: | 155.94 Nm (15.9 kgf-m or 115.0 ft.lbs) |
| Top speed: | 257.5 km/h (160.0 mph) |
| Cooling system: | Liquid |
| Gearbox: | 1-speed |
Transmission type,
final drive: | Chain |
| Driveline: | O-ring chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | # RADD-designed Quad-Element Frame. Billet aluminum and chrome-moly |
| Front suspension: | Öhlins FGR-000 TTX25 Gas Charged Fork |
| Rear suspension: | Single-sided billet aluminum swingarm with linear wheelbase/chain adjustment. Öhlins TTX36 Shock and linkage system. Adjustment for preload, ride height, high and low speed compression and rebound. |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 190/60-ZR17 |
| Front brakes: | Double disc. Bremo, narrow-band racing stainless rotors |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc. Bremo, 2-piece billet 4-piston 30/34 mm differential bore radial-mount calipers |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Marchesini forged magnesium 10-spoke. |
| Physical measures and capacities |
|---|
| Other specifications |
|---|
| Color options: | White/gray/black/yellow |
| Starter: | Electric |
| Comments: | Battery Pack: High Energy Lithium-Ion of 14.4 kWh w/Integrated Thermal Management System. |
