| MBK's profilation of this bike |
| With liquid-cooled power, plush long-travel suspension, a choice of enduro or supermotard wheel and tyre configurations and a six-speed gearbox, you may well find that the limits you thought you had are suddenly not quite so, well, limiting. That’s why this bike called X-Limit. In this context, X means No. |
|
General moped information |
|
Model
|

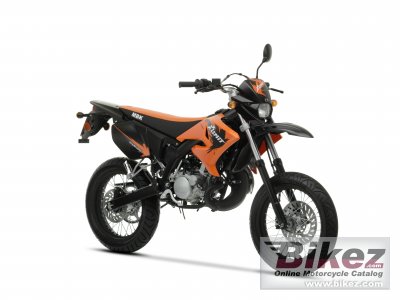

MBK X-Limit Super Moto |
|
Year
|
2009 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.7 ccm (3.03 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
2.8 HP (2.1 kW)) @ 6750 RPM |
|
Torque
|
3.3 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5250 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Autolube |
|
Cooling system
|
Liquid |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
190 mm (7.5 inches) |
|
Rear suspension
|
Hydraulic shock absorber |
|
Rear wheel travel
|
220 mm (8.7 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
98.0 kg (216.1 pounds) |
|
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2000 mm (78.7 inches) |
|
Ground clearance
|
317 mm (12.5 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Other specifications |
|
Starter
|
Kick |
