General moped information |
Motorcycle name
|

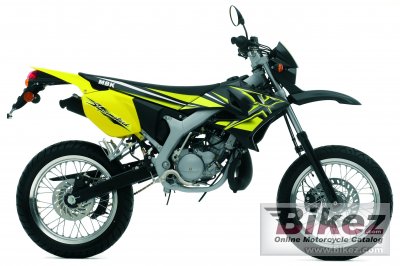

MBK X-Limit SM |
Year model
|
2005 |
Type
|
Super motard |
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
50.0 ccm (3.05 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Effect
|
2.1 HP (1.6 kW)) @ 5500 RPM |
Torque
|
2.8 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 5250 RPM |
Compression
|
12.0:1 |
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
Fuel system
|
Carburettor. DellĀ“Orto - PHBN 16 |
Ignition
|
CDI |
Lubrication system
|
Automatic pump with variable rpm |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Clutch
|
Wet multiple disc |
Chassis, suspension, brakes and wheels |
Front suspension
|
Hydraulic and telescopic fork |
Rear suspension
|
Hydraulic swing arm |
Front tire
|
80/90-17 |
Rear tire
|
130/80-17 |
Front brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc |
Diameter
|
218 mm (8.6 inches) |
Physical measures and capacities |
Dry weight
|
98.0 kg (216.1 pounds) |
Power/weight ratio
|
0.0218 HP/kg |
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
Ground clearance
|
151 mm (5.9 inches) |
Wheelbase
|
1350 mm (53.1 inches) |
Fuel capacity
|
6.50 litres (1.72 US gallons) |
Other specifications |
Starter
|
Kick |
