| MBK's profilation of this bike |
| Limits are everywhere. Not just speed limits, or limits on where you’re allowed to go, but also limits that exist only in your head. MBK’s X-Limit will challenge those man-made restrictions and expand your own personal limits. |
| General moped information |
|---|

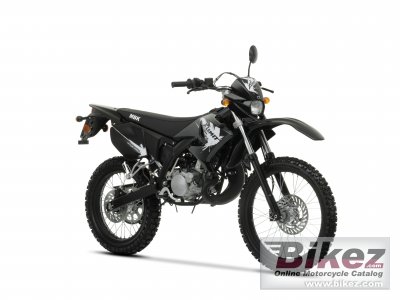

| Model: | MBK X-Limit Enduro |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 2.81 HP (2.1 kW)) @ 6750 RPM |
| Torque: | 3.30 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5250 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor |
| Ignition: | C.D.I. |
| Lubrication system: | Autolube |
| Cooling system: | Liquid |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Front wheel travel: | 190 mm (7.5 inches) |
| Rear suspension: | Hydraulic shock absorber |
| Rear wheel travel: | 220 mm (8.7 inches) |
| Front tyre: | 80/90-21 |
| Rear tyre: | 110/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 240 mm (9.4 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 114.2 kg (251.8 pounds) |
| Weight incl. oil, gas, etc: | 98.0 kg (216.1 pounds) |
| Power/weight ratio: | 0.0246 HP/kg |
| Seat height: | 900 mm (35.4 inches) If adjustable, lowest setting. |
| Overall height: | 1,160 mm (45.7 inches) |
| Overall length: | 2,050 mm (80.7 inches) |
| Overall width: | 850 mm (33.5 inches) |
| Ground clearance: | 347 mm (13.7 inches) |
| Wheelbase: | 1,350 mm (53.1 inches) |
| Fuel capacity: | 6.00 litres (1.59 gallons) |
| Other specifications |
|---|
| Color options: | Orange, black |
| Starter: | Kick |
