| MBK's profilation of this bike |
| Ever fantasized about getting dirty in the wilds? Stop dreaming, and ride your own trail with X-Limit, a tough little cruiser that takes the rough with the smooth. |
|
General moped information |
|
Model name
|

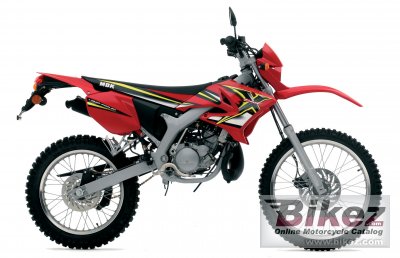

MBK X-Limit Enduro |
|
Year
|
2006 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
50.0 ccm (3.05 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
2.8 HP (2.1 kW)) @ 6750 RPM |
|
Torque
|
3.3 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5250 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBN 16 |
|
Ignition
|
Spark ignition |
|
Lubrication system
|
Seperate lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
Hydraulic shock absorber |
|
Front tire
|
80/90-21 |
|
Rear tire
|
110/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
98.0 kg (216.1 pounds) |
|
Power/weight ratio
|
0.0287 HP/kg |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1160 mm (45.7 inches) |
|
Overall length
|
2050 mm (80.7 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Ground clearance
|
347 mm (13.7 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
