| MBK's profilation of this bike |
| You need mobility – and not high running costs or poor reliablity. So MBK has launched the Waap. |
|
General moped information |
|
Motorcycle name
|

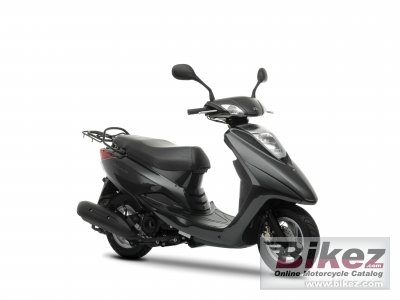

MBK Waap |
|
Model year
|
2009 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
8.6 HP (6.3 kW)) @ 7500 RPM |
|
Torque
|
3.7 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 7000 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
38.0 x 43.6 mm (1.5 x 1.7 inches) |
|
Fuel system
|
Injection. Electronic Fuel Injection |
|
Ignition
|
T.C.I |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Dry, centrifugal automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
80 mm (3.1 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
65 mm (2.6 inches) |
|
Front tire
|
100/90-10 |
|
Rear tire
|
100/90-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
153 mm (6.0 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
106.0 kg (233.7 pounds) |
|
Power/weight ratio
|
0.0809 HP/kg |
|
Seat height
|
730 mm (28.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1045 mm (41.1 inches) |
|
Overall length
|
1860 mm (73.2 inches) |
|
Overall width
|
670 mm (26.4 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
