| MBK's profilation of this bike |

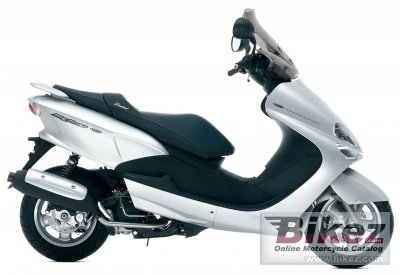

| Now MBK has raised the profile of the Skyliner 125 even higher with the new Skyliner 125 Limited Edition. Sleek and seductive, this ´Platinum´ Limited Edition version elevates scooter travel to the upper stages of comfort and refinement.
|
|
General information |
|
Model name
|
MBK Skyliner LTD |
|
Model year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
11.4 HP (8.3 kW)) @ 9000 RPM |
|
Torque
|
9.4 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 8500 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
53.7 x 54.8 mm (2.1 x 2.2 inches) |
|
Fuel system
|
Carburettor. CVK24 |
|
Ignition
|
Electronic (C.D.I.) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Clutch
|
Automatic centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic telescopic fork |
|
Rear suspension
|
Hydraulic unit swing |
|
Front tire
|
120/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
134.0 kg (295.4 pounds) |
|
Power/weight ratio
|
0.0850 HP/kg |
|
Seat height
|
774 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1285 mm (50.6 inches) |
|
Overall length
|
2030 mm (79.9 inches) |
|
Overall width
|
745 mm (29.3 inches) |
|
Ground clearance
|
102 mm (4.0 inches) |
|
Wheelbase
|
1480 mm (58.3 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
