| MBK's profilation of this bike |
| Uniquely, both air-cooled and liquid-cooled engine options are available for the sportily-inclined MachG traffic-buster. Here´s how you tell the difference. Bright blue MachGs are air-cooled. Dark grey ones are liquid-cooled. |
|
General moped information |
|
Model
|

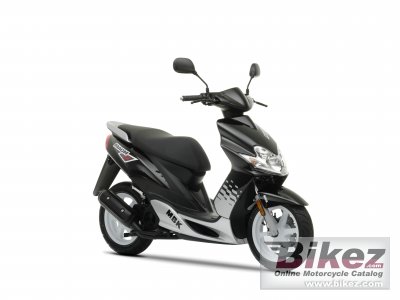

MBK MachG Air Cooled |
|
Year model
|
2009 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Effect
|
2.7 HP (2.0 kW)) @ 7000 RPM |
|
Torque
|
2.8 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 7000 RPM |
|
Compression
|
11.6:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
80 mm (3.1 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
70 mm (2.8 inches) |
|
Front tire
|
110/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
76.0 kg (167.6 pounds) |
|
Weight incl. oil, gas, etc
|
82.0 kg (180.8 pounds) |
|
Power/weight ratio
|
0.0359 HP/kg |
|
Seat height
|
765 mm (30.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1065 mm (41.9 inches) |
|
Overall length
|
1740 mm (68.5 inches) |
|
Overall width
|
675 mm (26.6 inches) |
|
Ground clearance
|
132 mm (5.2 inches) |
|
Wheelbase
|
1210 mm (47.6 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
| Update specs | Report missing specs or required updates. |
|
