| MBK's profilation of this bike |
| The mighty MachG is available in two versions, with an air-cooled or liquid-cooled engine. Both versions provide plenty of easy-to-use power with fully automatic transmission.
|
|
General moped information |
|
Model name
|

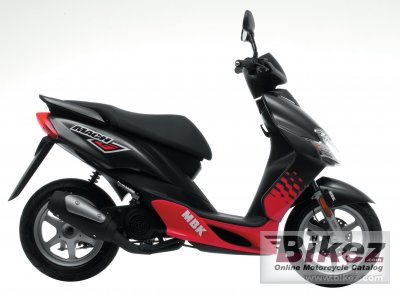

MBK MachG AC |
|
Year of manufacture
|
2006 |
|
Type
|
Scooter |
|
Rating
|
3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
2.2 HP (1.6 kW)) @ 6750 RPM |
|
Torque
|
2.5 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 4500 RPM |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Ignition
|
Electronic (C.D.I.) |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Air |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic and telescopic fork |
|
Rear suspension
|
Single |
|
Front tire
|
110/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
76.0 kg (167.6 pounds) |
|
Power/weight ratio
|
0.0283 HP/kg |
|
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
|
Overall height
|
675 mm (26.6 inches) |
|
Overall length
|
1740 mm (68.5 inches) |
|
Ground clearance
|
132 mm (5.2 inches) |
|
Wheelbase
|
1210 mm (47.6 inches) |
|
Fuel capacity
|
20.81 litres (5.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 MBK MachG AC discussion group or the general MBK discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this MBK moped
|
Engine performance for the 2006 MBK MachG AC:
 (63.3 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
