| MBK's profilation of this bike |

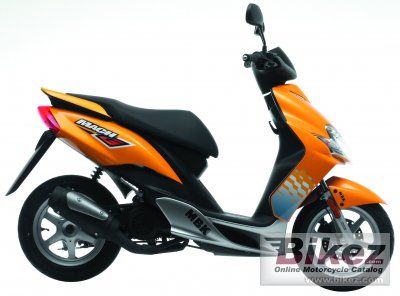

| As one of the hi-tech sports scooters from MBK, MachG is available in two versions, with an air-cooled or liquid-cooled engine. |
|
General moped information |
|
Motorcycle name
|
MBK MachG AC |
|
Year of manufacture
|
2005 |
|
Type
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
2.8 HP (2.0 kW)) @ 6750 RPM |
|
Torque
|
4.0 Nm (0.4 kgf-m or 2.9 ft.lbs) @ 6500 RPM |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Ignition
|
Electronic (C.D.I.) |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Air |
|
Clutch
|
Automatic centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic and telescopic fork |
|
Rear suspension
|
Single |
|
Front tire
|
110/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
75.0 kg (165.3 pounds) |
|
Power/weight ratio
|
0.0373 HP/kg |
|
Seat height
|
776 mm (30.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
132 mm (5.2 inches) |
|
Wheelbase
|
1210 mm (47.6 inches) |
|
Fuel capacity
|
5.30 litres (1.40 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
