| MBK's profilation of this bike |
| Whether you want to commute, shop or head out of the city into the country, Flame X can take you where you want to Designed to appeal to a broad section of riders, Flame X’s quiet, unobtrusive single-cylinder 125cc four-stroke engine provides ample power while a chassis with twin rear shock absorbers and a 220mm hydraulic front disc brake takes the city in its stride.
|
|
General information |
|
Motorcycle name
|

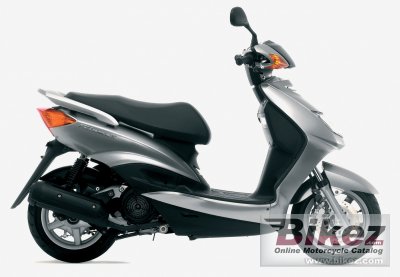

MBK Flame X |
|
Year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.8 ccm (7.62 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
11.0 HP (8.0 kW)) @ 8500 RPM |
|
Torque
|
9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 7500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Carburettor. CVK24 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
Hydraulic unit swing |
|
Front tire
|
110/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
150 mm (5.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
116.0 kg (255.7 pounds) |
|
Power/weight ratio
|
0.0947 HP/kg |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
1855 mm (73.0 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
| Update specs | Report missing specs or required updates. |
|
