| MBK's profilation of this bike |
| Fun and emissions-free, the pure electric EC-03 gives city-dwellers a totally new way to commute. With its comfortable upright seating, user-friendly design and digital LCD display, it´s remarkably easy to use. |
|
General information |
|
Model
|

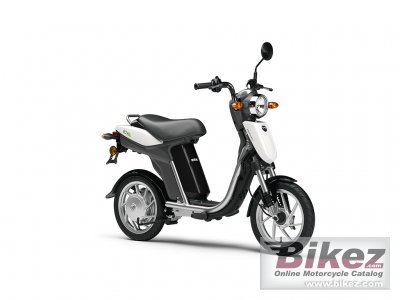

MBK EC03 |
|
Year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine type
|
Electric |
|
Engine details
|
AC synchronous motor |
|
Power
|
1.9 HP (1.4 kW)) @ 2550 RPM |
|
Torque
|
9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 280 RPM |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Backbone |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
50 mm (2.0 inches) |
|
Rear suspension
|
Unit Swing |
|
Rear wheel travel
|
55 mm (2.2 inches) |
|
Front tire
|
60/100-12 |
|
Rear tire
|
60/100-12 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
56.0 kg (123.5 pounds) |
|
Seat height
|
745 mm (29.3 inches) If adjustable, lowest setting. |
|
Overall height
|
990 mm (39.0 inches) |
|
Overall length
|
1565 mm (61.6 inches) |
|
Overall width
|
600 mm (23.6 inches) |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1080 mm (42.5 inches) |
|
Other specifications |
|
Color options
|
White |
|
Starter
|
Electric |
|
Electrical
|
Lithium-ion battery battery. |
|
Comments
|
Lithium-ion battery. |
