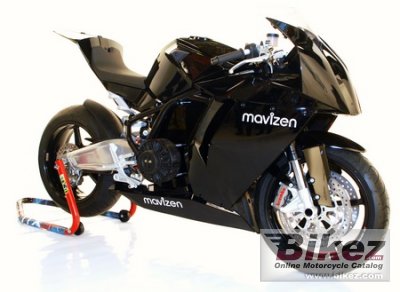

| Mavizen's profilation of this bike |
| The TTX02 was initially built for racing, as an off the shelf race bike. A TTX02 has competed in every round of the TTXGP season, with three in the Final at Albacete, Spain. This has been a fantastic development opportunity and the lessons learnt from the experience have been directly transferred to the bike. |
| General information |
|---|
| Model | Mavizen TTX02 |
| Year | 2012 |
| Category | Sport |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Engine type | Electric |
| Engine details | Twin DC Brushed Electric Motors. |
| Power | 100.0 HP (73.0 kW)) @ 5800 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5800 RPM |
| Top speed | 210.0 km/h (130.5 mph) |
| 0-100 km/h (0-62 mph) | 5.00 seconds |
| Cooling system | Air |
| Gearbox | 1-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Powder coated Chromium-Molybdenum trellis |
| Rake (fork angle) | 23.3° |
| Trail | 90 mm (3.5 inches) |
| Front suspension | WP-USD, 43 mm |
| Rear suspension | WP-Monoshock |
| Front tire | 120/70-17 |
| Rear tire | 190/55-17 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities |
|---|
| Dry weight | 115.0 kg (253.5 pounds) |
| Weight incl. oil, gas, etc | 170.0 kg (374.8 pounds) |
| Power/weight ratio | 0.8696 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Ground clearance | 110 mm (4.3 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Other specifications |
|---|
| Color options | Black |
| Starter | Electric |
| Instruments | Touch screen user interface and on board PC that is integrated into the bike´s electronics. |
| Electrical | 96V 7.5 kWh Lithium Polymer Battery Pack. Charge time: 4 hours. |
| Comments | Swappable drivetrain and batteries at trackside. Charging time 4 hours. Integrated IP connectivity. Linux based. USB based system bus allows a virtually unlimited number of peripherals to extend the capabilities of the machine with plug’n’play.
Remote factory support package available. |
