| Malaguti's profilation of this bike |
| Multi function onboard computer. Ø38mm leading spindle front fork and other exclusive technical solutions for you not to be one of the crowd. |
|
General moped information |
|
Model
|

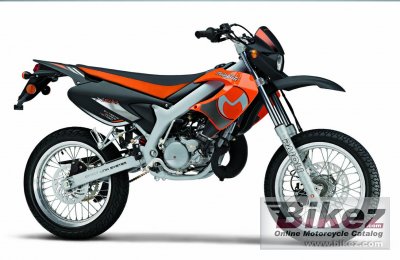

Malaguti XSM 50 Supermotard |
|
Year
|
2007 |
|
Category
|
Super motard |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.7 ccm (3.03 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBN16 |
|
Ignition
|
Electronic |
|
Lubrication system
|
Lubrication by automatic mixing pump with separate oil tank |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-disc oil bathed clutch |
|
Exhaust system
|
Catalyst exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel frame, split at the footboard level |
|
Front suspension
|
Telescopic-hydraulic fork |
|
Rear suspension
|
Swinging engine and side hydraulic shock absorber with coaxial progressive pitch helical spring |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
96.0 kg (211.6 pounds) |
|
Seat height
|
880 mm (34.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2000 mm (78.7 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Wheelbase
|
1350 mm (53.1 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange,
blue/black |
|
Starter
|
Kick |
