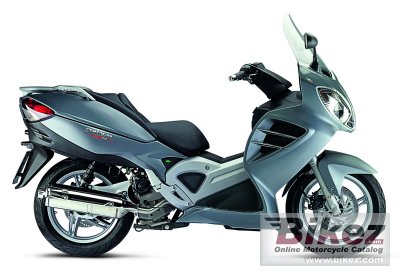

Malaguti SpiderMax RS500 20102010 Malaguti SpiderMax RS500 specifications, pictures, reviews and rating |
| Malaguti's profilation of this bike |
| The new RS has a big sized underseat compartment, big enough to hold two full-face helmets or an overnight bag. Definitely, a prestigious touring bike. |
| General information | |
|---|---|
| Motorcycle name | Malaguti SpiderMax RS500 |
| Model year | 2010 |
| Category | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 493.0 ccm (30.08 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 40.9 HP (29.9 kW)) |
| Torque | 40.4 Nm (4.1 kgf-m or 29.8 ft.lbs) @ 7250 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 94.0 x 71.0 mm (3.7 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | By double filtering wet crankcase |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Centrifugal |
| Exhaust system | Euro 3. Catalytic converter by lambda sensor. |
| Chassis, suspension, brakes and wheels | |
| Frame type | V-BOX aluminium monococque structure |
| Front suspension | 41 mm telescopic hydraulic fork |
| Rear suspension | Swinging engine and double hdyraulic shock absorbers with adjustable spring preloading. |
| Front tire | 120/80-16 |
| Rear tire | 150/70-16 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 204.0 kg (449.7 pounds) |
| Power/weight ratio | 0.2005 HP/kg |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height | 1430 mm (56.3 inches) |
| Overall length | 2220 mm (87.4 inches) |
| Overall width | 810 mm (31.9 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 14.50 litres (3.83 US gallons) |
| Other specifications | |
| Color options | Silver, titanium, dark blue |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Malaguti SpiderMax RS500 discussion group or the general Malaguti discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2010 Malaguti SpiderMax RS500 or advertise any other MC for sale. You can list all 2010 Malaguti SpiderMax RS500 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Malaguti bike | |
Touring capabilities for the 2010 Malaguti SpiderMax RS500:  (73.2 out of 100)Click here for complete rating. |
|
