| Malaguti's profilation of this bike |
| The performance and the emotions of a real motorcycle together with the practicality and comfort of a maxi scooter. |
|
General information |
|
Model
|

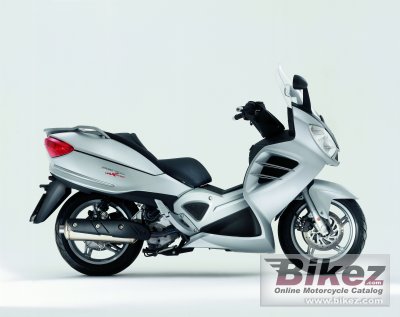

Malaguti SpiderMax GT500 |
|
Year model
|
2010 |
|
Type
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
459.0 ccm (28.01 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
39.5 HP (28.8 kW)) @ 7500 RPM |
|
Torque
|
40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 6000 RPM |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EMS (Electronic Management System) alpha-speed injection and ignition system with atmospheric pressure sensor . |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Lubrication by double filtering wet crankcase. |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Centrifugal |
|
Exhaust system
|
Exhaust system with 2-channel catalyst. Euro III. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
V-BOX aluminium monococque structure |
|
Front suspension
|
41 mm telescopic hydraulic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
By swinging engine and two hydraulic shock absorbers with adjustable spring preloading. |
|
Rear wheel travel
|
75 mm (3.0 inches) |
|
Front tire
|
120/80-16 |
|
Rear tire
|
150/70-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
204.0 kg (449.7 pounds) |
|
Power/weight ratio
|
0.1936 HP/kg |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1430 mm (56.3 inches) |
|
Overall length
|
2240 mm (88.2 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
14.50 litres (3.83 US gallons) |
|
Other specifications |
|
Color options
|
Silver, titanium, hemisphere blue |
|
Starter
|
Electric |
