| Malaguti's profilation of this bike |

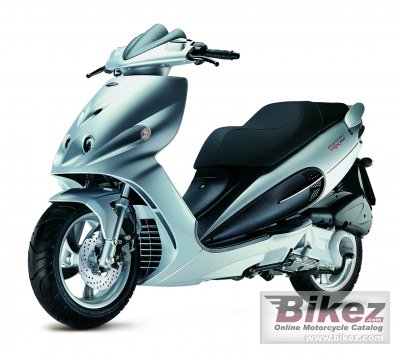

| Phantom Max 250 fits the new 250cc QUASAR propeller, a really high performance engine, which makes an exciting combination with the compactness, lightness and handiness of this Malaguti scooter.
|
|
General information |
|
Model
|
Malaguti Phantom Max 250 |
|
Year of manufacture
|
2007 |
|
Type
|
Scooter |
|
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
244.8 ccm (14.94 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
22.0 HP (16.1 kW)) @ 8500 RPM |
|
Torque
|
20.0 Nm (2.0 kgf-m or 14.8 ft.lbs) @ 6750 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
72.0 x 60.0 mm (2.8 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Exhaust system
|
Catalyst exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel frame |
|
Front suspension
|
Hydraulic fork |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Swinging engine and 2 hydraulic shock absorbers |
|
Rear wheel travel
|
80 mm (3.1 inches) |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
138.0 kg (304.2 pounds) |
|
Power/weight ratio
|
0.1594 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1279 mm (50.4 inches) |
|
Overall length
|
1980 mm (78.0 inches) |
|
Overall width
|
760 mm (29.9 inches) |
|
Wheelbase
|
1400 mm (55.1 inches) |
|
Other specifications |
