Malaguti's profilation of this bike |
Phantom Max 250 is a ´SUPER SPORT´ scooter dedicated for most sports, demanding users, looking for power and handiness, performance and quickness and an excellent ratio between quality and performance, as well.
|
General information |
Model name
|

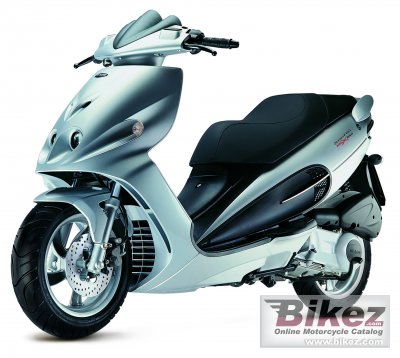

Malaguti Phantom Max 250 |
Year of manufacture
|
2006 |
Type
|
Scooter |
Rating
|
3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
244.8 ccm (14.94 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Output
|
22.1 HP (16.1 kW)) @ 8500 RPM |
Torque
|
20.0 Nm (2.0 kgf-m or 14.8 ft.lbs) @ 6750 RPM |
Compression
|
11.0:1 |
Bore x stroke
|
72.0 x 60.0 mm (2.8 x 2.4 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Transmission type
|
Belt (final drive) |
Clutch
|
Automatic centrifugal dry clutch |
Exhaust system
|
Catalyst exhaust system |
Chassis, suspension, brakes and wheels |
Frame type
|
High resistance braced tubular steel frame |
Front suspension
|
Hydraulic fork |
Rear suspension
|
Swinging engine and 2 hydraulic shock absorbers |
Front tire
|
120/70-14 |
Rear tire
|
140/60-14 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
138.0 kg (304.2 pounds) |
Power/weight ratio
|
0.1601 HP/kg |
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
Overall height
|
1210 mm (47.6 inches) |
Overall length
|
1980 mm (78.0 inches) |
Overall width
|
760 mm (29.9 inches) |
Wheelbase
|
1360 mm (53.5 inches) |
Fuel capacity
|
9.40 litres (2.48 US gallons) |
Other specifications |
Starter
|
Electric |
