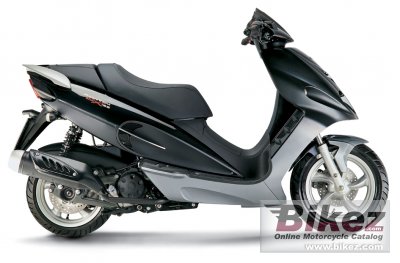

Malaguti Phantom Max 125 20062006 Malaguti Phantom Max 125 specifications, pictures, reviews and rating |
| Malaguti's profilation of this bike |
| A modern, powerful scooter, performing a good cruising speed, acceleration, protection, stability, braking. |
| General information | |
|---|---|
| Model | Malaguti Phantom Max 125 |
| Year model | 2006 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 13.4 HP (9.8 kW)) @ 9500 RPM |
| Torque | 10.5 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 8000 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 53.7 x 54.8 mm (2.1 x 2.2 inches) |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Clutch | Automatic centrifugal dry clutch |
| Exhaust system | Catalyst exhaust system |
| Chassis, suspension, brakes and wheels | |
| Frame type | High resistance braced tubular steel |
| Front suspension | Hydraulic fork |
| Rear suspension | Swinging engine and two hydraulic shock absorbers |
| Front tire | 120/70-14 |
| Rear tire | 140/60-14 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 131.0 kg (288.8 pounds) |
| Power/weight ratio | 0.1024 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height | 1210 mm (47.6 inches) |
| Overall length | 1980 mm (78.0 inches) |
| Wheelbase | 1360 mm (53.5 inches) |
| Fuel capacity | 9.40 litres (2.48 US gallons) |
| Other specifications | |
| Color options | Silver, Dark Blue/Titanium,Blue Black, Velvet Black |
| Starter | Electric |
