| Malaguti's profilation of this bike |
| Thanks to the partnership with Ducati Corse, Malaguti presents the Replica of the motorbike of Troy Bayliss which won the third world championship of the Superbike in 2008. |
|
General moped information |
|
Model name
|

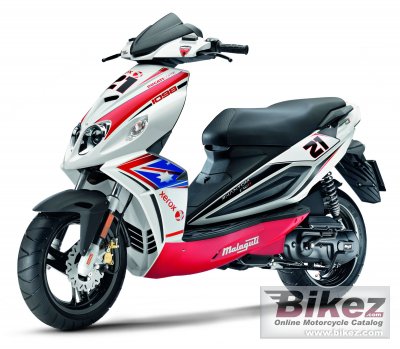

Malaguti Phantom F12R Bayliss |
|
Year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Lubrication system
|
Lubrication by automatic mixing pump with separate oil tank. |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Exhaust system
|
Euro 2 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High resistance tubular steel |
|
Front tire
|
130/60-13 |
|
Rear tire
|
140/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
96.0 kg (211.6 pounds) |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1172 mm (46.1 inches) |
|
Overall length
|
1837 mm (72.3 inches) |
|
Overall width
|
704 mm (27.7 inches) |
|
Wheelbase
|
1275 mm (50.2 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Red/white/blue. |
|
Starter
|
Electric & kick |
