General information |
|
Motorcycle name
|

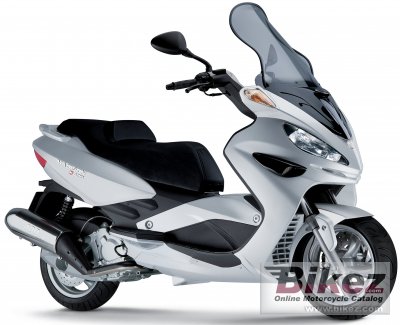

Malaguti Madison 400 |
|
Year
|
2005 |
|
Category
|
Scooter |
|
Rating
|
3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
383.0 ccm (23.37 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
30.8 HP (22.5 kW)) @ 7000 RPM |
|
Torque
|
34.0 Nm (3.5 kgf-m or 25.1 ft.lbs) @ 5750 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
86.0 x 66.0 mm (3.4 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital electronic ignition |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High resistance braced tubular steel frame |
|
Front suspension
|
Front suspension by hydraulic fork, ΓΈ 36 mm stanchions |
|
Rear suspension
|
By swinging engine and 2 hydraulic shock absorbers |
|
Front tire
|
120/70-13 |
|
Rear tire
|
140/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
178.0 kg (392.4 pounds) |
|
Power/weight ratio
|
0.1733 HP/kg |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
