| Malaguti's profilation of this bike |
| MADISON 3 is the third new born among the Madison ´family´ vehicles: 75,000 customers have chosen to ride a Madison since 1999.
|
|
General information |
|
Model
|

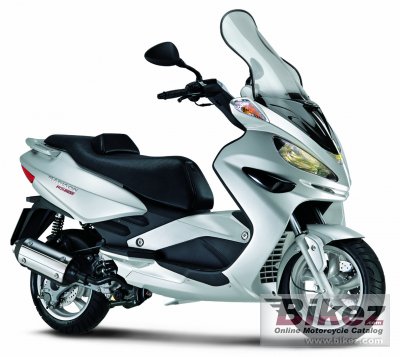

Malaguti Madison 3 250 |
|
Year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
244.0 ccm (14.89 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
22.1 HP (16.1 kW)) @ 8500 RPM |
|
Bore x stroke
|
72.0 x 60.0 mm (2.8 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Exhaust system
|
Catalyst exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High resistance braced tubular steel frame |
|
Front suspension
|
Hydraulic fork |
|
Rear suspension
|
Swinging engine and 2 hydraulic shock absorbers |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
158.0 kg (348.3 pounds) |
|
Power/weight ratio
|
0.1398 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall length
|
1980 mm (78.0 inches) |
|
Wheelbase
|
1360 mm (53.5 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
