| Malaguti's profilation of this bike |
| Best handling in city traffic and top performance when travelling also for the youngest riders. |
|
General information |
|
Model
|

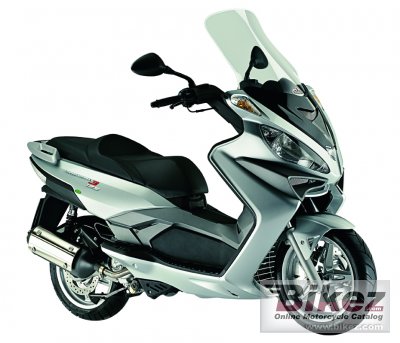

Malaguti Madison 3 125 |
|
Model year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
125.0 ccm (7.63 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
14.8 HP (10.8 kW)) @ 10000 RPM |
|
Torque
|
12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 10000 RPM |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Exhaust system
|
Catalyst exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High resistance braced tubular steel |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
153.0 kg (337.3 pounds) |
|
Power/weight ratio
|
0.0964 HP/kg |
|
Overall height
|
795 mm (31.3 inches) |
|
Overall length
|
1980 mm (78.0 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Arctic silver, velvet blue, orange, velvet black |
|
Starter
|
Electric |
