| Malaguti's profilation of this bike |
| The new MADISON 3 line-up is now powered also by a a 124cc, 4-stroke, 4-valves and liquid cooled engine.
It´s environmentally friendly because Euro 3 compliant.
|
|
General information |
|
Model
|

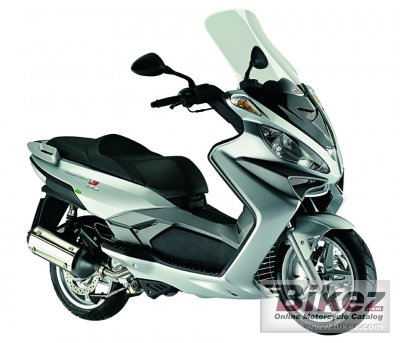

Malaguti Madison 3 125 |
|
Year model
|
2007 |
|
Type
|
Scooter |
|
Rating
|
3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
14.8 HP (10.8 kW)) @ 10000 RPM |
|
Torque
|
12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 10000 RPM |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Exhaust system
|
Catalyst exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High resistance braced tubular steel frame |
|
Front suspension
|
Hydraulic fork |
|
Rear suspension
|
Swinging engine and 2 hydraulic shock absorbers |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
153.0 kg (337.3 pounds) |
|
Power/weight ratio
|
0.0964 HP/kg |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Overall length
|
1980 mm (78.0 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
Arctic silver,
velvet blue, orange, velvet black |
|
Starter
|
Electric |
