Malaguti's profilation of this bike |
Best handling in city traffic and top performance when travelling also for the youngest riders.
A modern design gives you all the emotions of the popular Madison line-up: the front shield or a genuine ´made in Italy´ Malaguti branded vehicle: more than 95% of its parts come from Italian suppliers. |
General information |
Motorcycle name
|

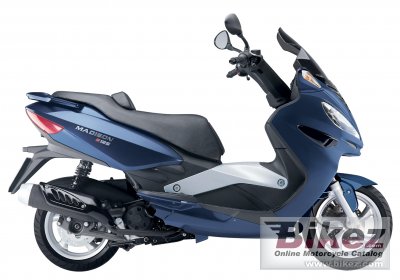

Malaguti Madison 3 125 |
Year model
|
2006 |
Type
|
Scooter |
Rating
|
3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.0 ccm (7.57 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Effect
|
14.8 HP (10.8 kW)) @ 11000 RPM |
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Clutch
|
Automatic centrifugal dry clutch |
Exhaust system
|
Catalyst exhaust system |
Chassis, suspension, brakes and wheels |
Frame type
|
High resistance braced tubular steel frame |
Front suspension
|
Hydraulic fork |
Rear suspension
|
Swinging engine and 2 hydraulic shock absorbers |
Front tire
|
120/70-14 |
Rear tire
|
140/60-14 |
Front brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Rear brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Dry weight
|
153.0 kg (337.3 pounds) |
Power/weight ratio
|
0.0964 HP/kg |
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
Overall length
|
1980 mm (78.0 inches) |
Wheelbase
|
1410 mm (55.5 inches) |
Fuel capacity
|
9.00 litres (2.38 US gallons) |
Other specifications |
Starter
|
Electric |
