General information |
|
Model name
|

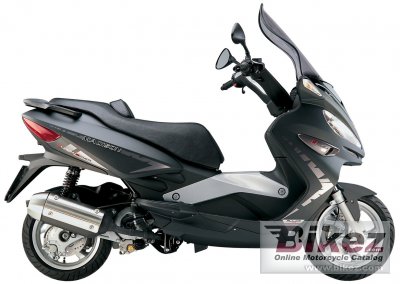

Malaguti Madison 200 |
|
Year model
|
2005 |
|
Type
|
Scooter |
|
Rating
|
3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
198.0 ccm (12.08 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
19.4 HP (14.2 kW)) @ 8750 RPM |
|
Torque
|
17.5 Nm (1.8 kgf-m or 12.9 ft.lbs) @ 6750 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
72.0 x 48.6 mm (2.8 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High resistance braced tubular steel frame |
|
Front suspension
|
Front suspension by hydraulic fork, ΓΈ 36 mm stanchions |
|
Rear suspension
|
Rear suspension by swinging engine and 2 hydraulic shock absorbers |
|
Front tire
|
120/70-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
150.0 kg (330.7 pounds) |
|
Power/weight ratio
|
0.1296 HP/kg |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
