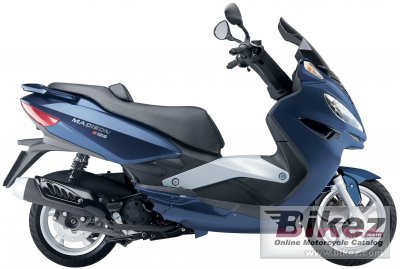

Malaguti Madison 125 20052005 Malaguti Madison 125 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Malaguti Madison 125 |
| Model year | 2005 |
| Category | Scooter |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 12.1 HP (8.8 kW)) @ 9000 RPM |
| Torque | 11.0 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 7500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 53.7 x 54.8 mm (2.1 x 2.2 inches) |
| Fuel system | Carburettor. Dell’Orto SHA 14/12 |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | High resistance braced tubular steel frame |
| Front suspension | Front suspension by hydraulic fork, ø 36 mm stanchions |
| Rear suspension | Rear suspension by swinging engine and 2 hydraulic shock absorbers |
| Front tire | 120/70-13 |
| Rear tire | 130/60-13 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 142.0 kg (313.1 pounds) |
| Power/weight ratio | 0.0849 HP/kg |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Starter | Electric |
