Malaguti Drakon NKD 50 20072007 Malaguti Drakon NKD 50 specifications, pictures, reviews and rating |

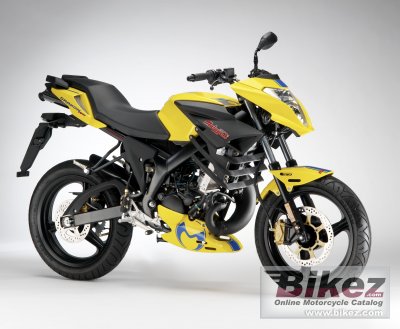

 2007 Malaguti Drakon NKD 50. Picture credits - Malaguti. Submit more pictures.
|
| Malaguti's profilation of this bike |
| Drakon 50 looks modern and technically superb. A multifunction on board computer includes tachometer, speedometer, partial and total odometer, running max and average speed , acceleration timing, battery voltage, timepiece, chronometer and coolant temperature: a real onboard computer for the most demanding youngsters to have fun! |
| General moped information | |
|---|---|
| Model: | Malaguti Drakon NKD 50 |
| Year: | 2007 |
| Category: | Naked bike |
| Rating: | 3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement: | 50.0 ccm (3.05 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 12.0:1 |
| Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Dell´Orto PHBN16 |
| Fuel control: | Single Overhead Cams (SOHC) |
| Lubrication system: | Separate lubrication by automatic mixing pump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Clutch: | Multi-disc oil bathed clutch |
| Chassis, suspension, brakes and wheels | |
| Front tyre: | 100/80-17 |
| Rear tyre: | 130/70-17 |
| Front brakes: | Single disc |
| Diameter: | 280 mm (11.0 inches) |
| Rear brakes: | Single disc |
| Diameter: | 218 mm (8.6 inches) |
| Physical measures and capacities | |
| Dry weight: | 112.0 kg (246.9 pounds) |
| Overall length: | 1970 mm (77.6 inches) |
| Overall width: | 755 mm (29.7 inches) |
| Wheelbase: | 1325 mm (52.2 inches) |
| Fuel capacity: | 10.00 litres (2.64 gallons) |
| Reserve fuel capacity: | 1.20 litres (0.32 gallons) |
| Other specifications | |
| Color options: | Black, Yellow/black |
| Starter: | Electric |
| Comments: | A special Dicati Course version ia available. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Ask questions | Join the 07 Malaguti Drakon NKD 50 discussion group or the general Malaguti discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used mopeds?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2007 Malaguti Drakon NKD 50 or advertise any other MC for sale. You can list all 2007 Malaguti Drakon NKD 50 available and also sign up for e-mail notification when such mopeds are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the moped's engine performance, repair costs, etc. |
|
| Rating sample for this Malaguti moped | |
Racing track capabilities for the 2007 Malaguti Drakon NKD 50:  (76.2 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
