Malaguti Drakon 50 2006

2006 Malaguti Drakon 50 specifications, pictures, reviews and rating

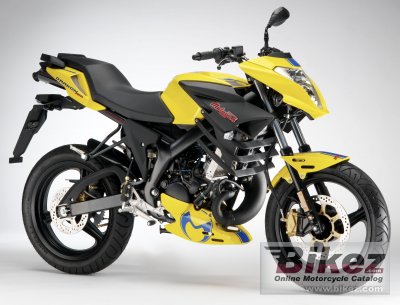

2006 Malaguti Drakon 50. Picture credits - Malaguti. Submit more pictures.

Show big 2006 Malaguti Drakon 50 picture

Malaguti's profilation of this bike

Addressed to 14/17 years old, who don’t like compromises and buy a 50cc true first class motorcycle, with no half-measures.

General moped information
Model:	Malaguti Drakon 50
Year:	2006
Category:	Naked bike
Rating:	72.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	50.00 ccm (3.05 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	12.0:1
Bore x stroke:	40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves per cylinder:	4
Fuel system:	Carburettor. Dell´Orto PHBN16
Fuel control:	Single Overhead Cams (SOHC)
Cooling system:	Liquid
Gearbox:	6-speed
Clutch:	Multi-disc oil bathed clutch
Chassis, suspension, brakes and wheels
Front tyre:	100/80-17
Rear tyre:	130/70-17
Front brakes:	Single disc
Front brakes diameter:	280 mm (11.0 inches)
Rear brakes:	Single disc
Rear brakes diameter:	218 mm (8.6 inches)
Physical measures and capacities
Dry weight:	112.0 kg (246.9 pounds)
Overall length:	1,970 mm (77.6 inches)
Wheelbase:	1,325 mm (52.2 inches)
Fuel capacity:	10.00 litres (2.64 gallons)
Reserve fuel capacity:	1.20 litres (0.32 gallons)
Other specifications
Starter:	Electric
Further information
