Malaguti's profilation of this bike |
Comfortable, safe, elegant. CIAK MASTER makes you want to ride. An exclusive design for a first class riding or commuting into downtown. |
General information |
Motorcycle name
|

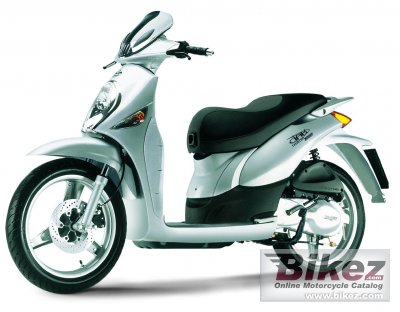

Malaguti Ciak Master 125 |
Model year
|
2006 |
Category
|
Scooter |
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.0 ccm (7.57 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.6:1 |
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Air |
Transmission type
|
Belt (final drive) |
Clutch
|
Automatic centrifugal dry clutch |
Exhaust system
|
Catalyst exhaust system |
Chassis, suspension, brakes and wheels |
Frame type
|
High Resistance tubular steel frame split at the footboard level |
Front suspension
|
Telescopic hydraulic fork |
Rear suspension
|
Swinging engine and 2 hydraulic shock absorbers |
Front tire
|
100/80-16 |
Rear tire
|
110/80-16 |
Front brakes
|
Single disc |
Diameter
|
230 mm (9.1 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
130 mm (5.1 inches) |
Physical measures and capacities |
Dry weight
|
117.0 kg (257.9 pounds) |
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
Overall height
|
1200 mm (47.2 inches) |
Overall length
|
2020 mm (79.5 inches) |
Wheelbase
|
1380 mm (54.3 inches) |
Fuel capacity
|
8.00 litres (2.11 US gallons) |
Other specifications |
Starter
|
Electric & kick |
