General moped information |
|
Model name
|

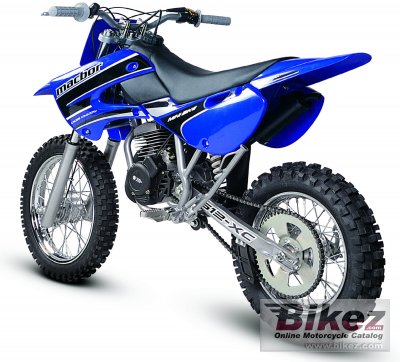

Macbor XC 512 S |
|
Year model
|
2004 |
|
Type
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.8 ccm (3.04 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.0 x 41.7 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Liquid |
|
Gearbox
|
1-speed |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Mechanical fork |
|
Front wheel travel
|
175 mm (6.9 inches) |
|
Rear suspension
|
Single shock absorber |
|
Rear wheel travel
|
235 mm (9.3 inches) |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
41.0 kg (90.4 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall height
|
910 mm (35.8 inches) |
|
Overall length
|
1490 mm (58.7 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Wheelbase
|
1035 mm (40.7 inches) |
|
Fuel capacity
|
3.90 litres (1.03 US gallons) |
|
