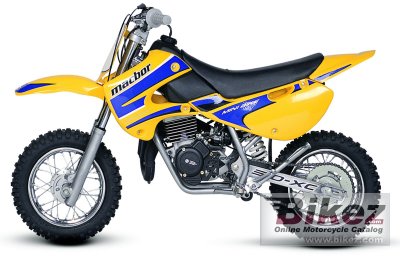

Macbor XC 510 S 20042004 Macbor XC 510 S specifications, pictures, reviews and rating |
| General moped information | |
|---|---|
| Model | Macbor XC 510 S |
| Model year | 2004 |
| Category | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.8 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 1-speed |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Mechanical fork |
| Front wheel travel | 145 mm (5.7 inches) |
| Rear suspension | Single shock absorber |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 38.0 kg (83.8 pounds) |
| Seat height | 580 mm (22.8 inches) If adjustable, lowest setting. |
| Overall height | 780 mm (30.7 inches) |
| Overall length | 1270 mm (50.0 inches) |
| Overall width | 700 mm (27.6 inches) |
| Wheelbase | 900 mm (35.4 inches) |
| Fuel capacity | 3.90 litres (1.03 US gallons) |
| Other specifications | |
