| General moped information |
|---|

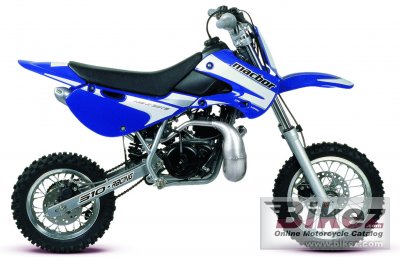

| Model | Macbor XC 510 Racing |
| Year | 2004 |
| Category | Minibike, cross |
| Rating | 3.5 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 49.9 ccm (3.05 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Bore x stroke | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Cooling system | Liquid |
| Gearbox | 1-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Hydraulic |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | Gas monoshock absorber |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities |
|---|
| Dry weight | 48.0 kg (105.8 pounds) |
| Seat height | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height | 780 mm (30.7 inches) |
| Overall length | 1430 mm (56.3 inches) |
| Overall width | 700 mm (27.6 inches) |
| Wheelbase | 1035 mm (40.7 inches) |
| Fuel capacity | 3.90 litres (1.03 US gallons) |
| Other specifications |
|---|
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Macbor XC 510 Racing discussion group or the general Macbor discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Macbor moped
|
Value for money for the 2004 Macbor XC 510 Racing:
 (75.8 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
