| Macbor's profilation of this bike |
| The XC512 T is an evolution of the XC512 S. It incorporates a more powerful motor. |
|
General moped information |
|
Model name
|

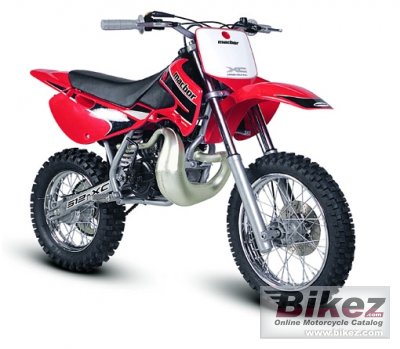

Macbor XC512 T |
|
Model year
|
2009 |
|
Category
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.8 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.0 x 41.7 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
2% mixture |
|
Cooling system
|
Air |
|
Gearbox
|
1-speed |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Mechanical fork |
|
Rear suspension
|
Single shock absorber |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall length
|
1490 mm (58.7 inches) |
|
Wheelbase
|
1035 mm (40.8 inches) |
|
Fuel capacity
|
3.25 litres (0.86 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Kick |
|
Comments
|
Intended for children. |
