Macbor's profilation of this bike |
The XC512 Racing is identical to the XC510 Racing as far as equipment and performances but it assemble wheels of 14´ and 12´. |
General moped information |
---|

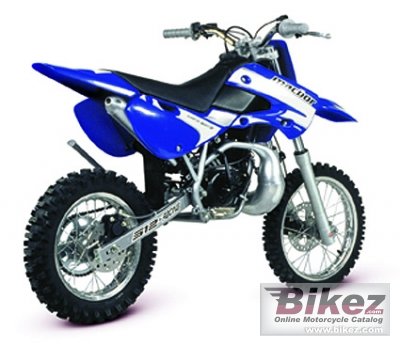

Model | Macbor XC512 Racing |
Year | 2009 |
Category | Minibike, cross |
Rating | 3.0 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 50.0 ccm (3.05 cubic inches) |
Engine type | Single cylinder, two-stroke |
Power | 9.0 HP (6.6 kW)) |
Bore x stroke | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
Fuel system | Carburettor. Dell´Orto PHGB |
Fuel control | Overhead Cams (OHC) |
Ignition | Electronic |
Lubrication system | 2% mixture |
Cooling system | Liquid |
Gearbox | Automatic |
Transmission type | Chain (final drive) |
Clutch | Automatic |
Chassis, suspension, brakes and wheels |
---|
Frame type | Steel pipe |
Front suspension | Hydraulic fork |
Rear suspension | Gas monoshock absorber |
Front brakes | Single disc |
Rear brakes | Single disc |
Physical measures and capacities |
---|
Seat height | 740 mm (29.1 inches) If adjustable, lowest setting. |
Overall length | 1490 mm (58.7 inches) |
Wheelbase | 1035 mm (40.8 inches) |
Fuel capacity | 3.25 litres (0.86 US gallons) |
Other specifications |
---|
Color options | Blue/white |
Starter | Kick |
Comments | Wheels 14´-12´. |
Update specs | Report missing specs or required updates. |
Further information |
---|
Insurance costs |
|
Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 09 Macbor XC512 Racing discussion group or the general Macbor discussion group. |
Related bikes | List related bikes for comparison of specs. |
|
Rating sample for this Macbor moped
|
Value for money for the 2009 Macbor XC512 Racing:

(53.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
